FLIGHT DISTRIBUTION CONVEYOR
Evenly spaced. Precisely placed. Built for throughput.
The Flex-End system delivers sludge and bulk solids where you need them—angled, side-discharged, or directly into bins—with zero spillage and tight placement control.
Flight Distribution

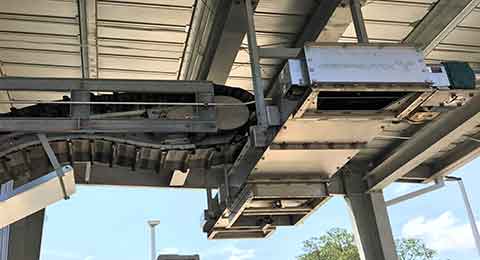

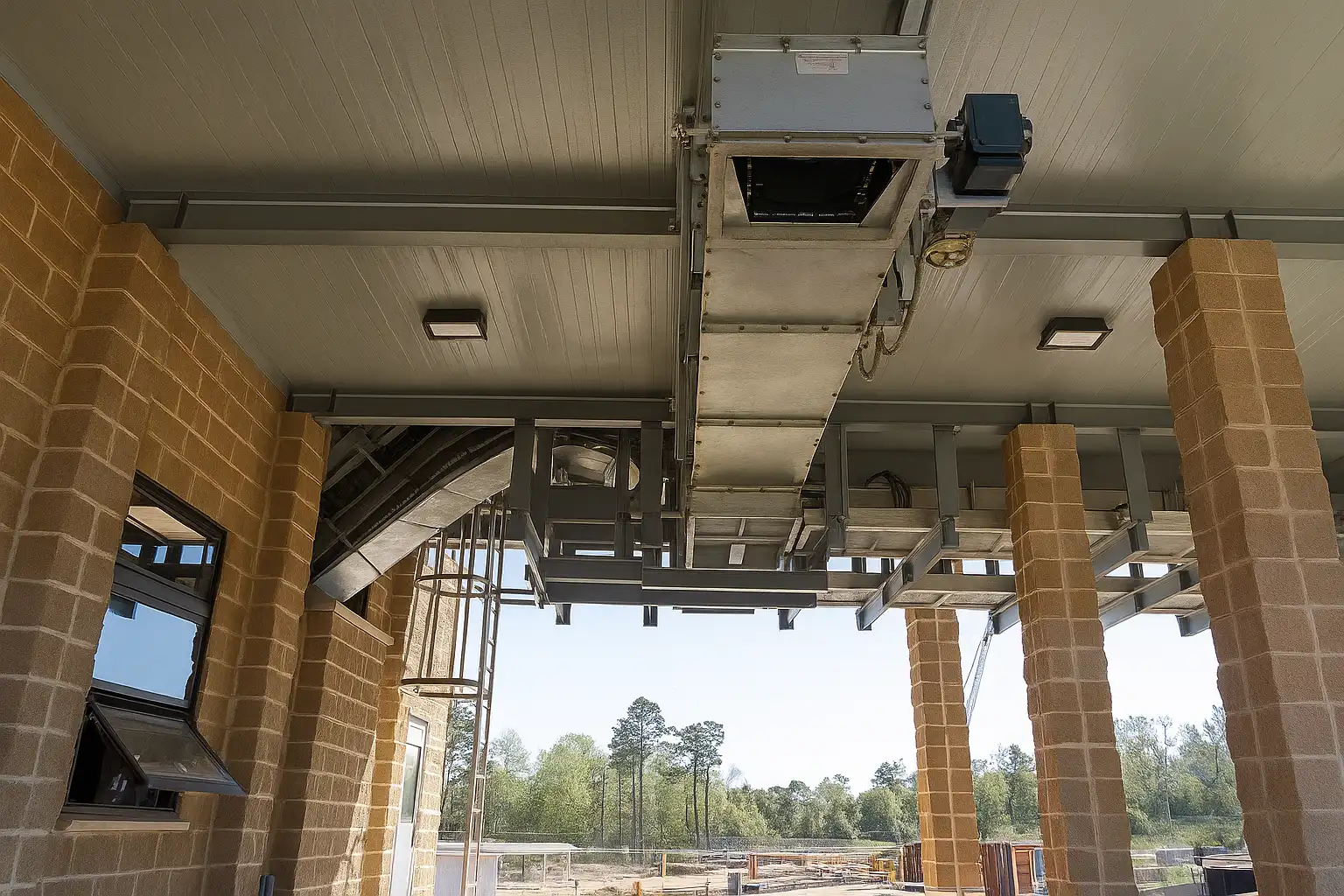

The Serpentix Flight Distribution (FD) Conveyor, used in conjunction with our standard conveyors, or as a stand-alone unit, allows for material to be distributed over a large area with multiple exit points. This is the ideal solution for distributing waste material to multiple bins or truck beds and allows the end user to simply open or close the exit points as needed by way of the pneumatic slide-gate system.
- Distributes material to multiple exit points
- Reversible operation
- Low power requirements
- Low maintenance
- Quiet operation
- Modular design for future expansion
Applications
Sludge press feeding
Dewatering system discharge
Equal distribution into multiple bins or containers
Industrial solids leveling and filling
Applications
Engineered to handle sludge, screenings, and solids with precision, our systems streamline discharge, feeding, and bin filling across a wide range of industrial processes.
Specs at a Glance
| Feature | Flight Conveyor Details |
|---|---|
| Distribution Type | Linear, multi-point, equal fill |
| Belt Type | Segmented with flight paddles |
| Compatible Models | Pathwinder P2, Model-H |
| Output Method | Direct discharge + scraping |
| Mounting Orientation | Horizontal or angled |
| Maintenance Access | Front-facing panel + top lift |
Smart Distribution Features
Flight Paddle Technology
Flights mounted to the belt distribute sludge evenly and scrape buildup off surfaces
Multi-Drop Design
Feed sludge into multiple bins with a single system—balanced and timed for efficiency
Low Spill Configuration
Engineered edge barriers and tight seals keep sludge where it belongs
Quick Maintenance Panels
Discharge zones and paddles are easy to inspect, clean, and replace
Why It Perfoms Better Than Flat Belt Conveyors
| Feature | Flight Conveyor | Gravity Drop Chute |
|---|---|---|
| Distribution Accuracy | High (even fill) | Low (center-weighted) |
| Spill Risk | Minimal | Moderate to high |
| Maintenance Access | Easy panel access | Limited, internal only |
| Bin Utilization | Maximum (edge to edge) | Partial (center pile) |
| Retrofit Potential | Bolt-on or modular | Needs chute housing |
Ideal for...
Feeding multiple dewatering bins with uniform sludge load
Retrofitting plants with uneven or compact layouts
Minimizing cleanup time and material loss
Integrating with Pathwinder systems for full automation
Ideal for...
Perfect for plants seeking flexible layouts, reduced cleanup, and seamless integration into automated systems without costly rebuilds.
Case Studies Using the Flight Distribution

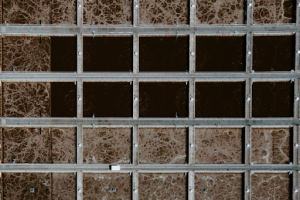

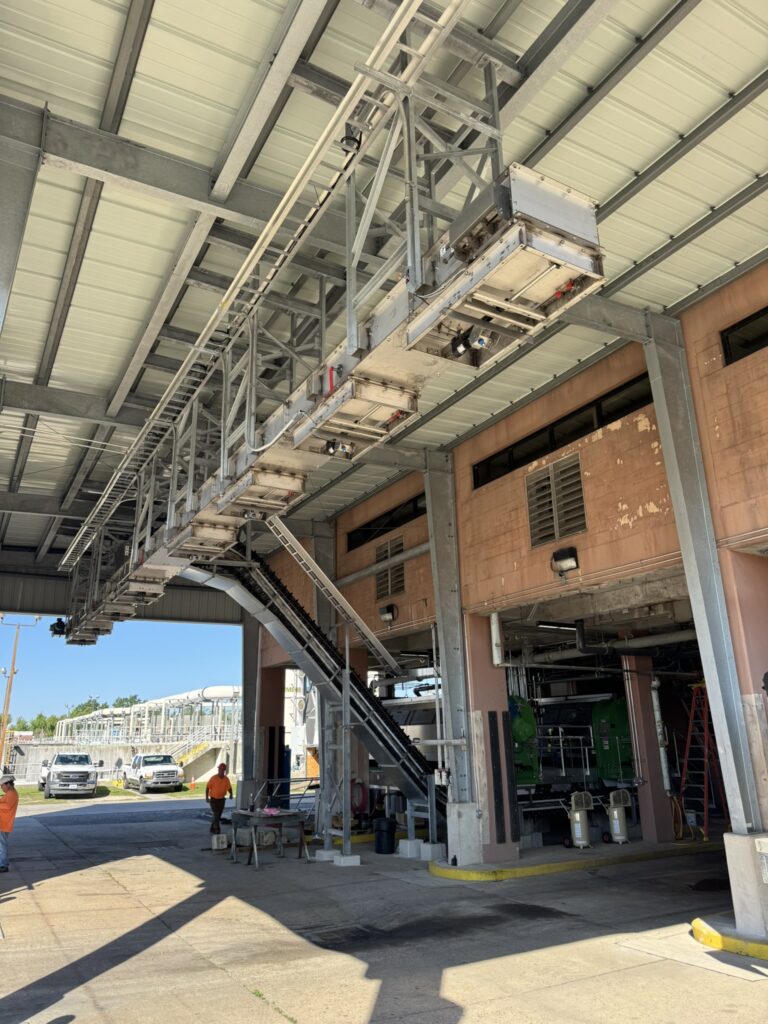

City of Kenner
Application: sludge movement
Reason: Multi-stream discharge and distribution needs
Request your Layout Package in .dwg, .dxf, or .pdf format. Get custom discharge layouts optimized for bin dimensions, belt speed, and paddle frequency.
Flight Distribution Conveyor for Controlled Material Loading
Engineered to deliver uniform material distribution along the full length of transport vehicles through calibrated flight spacing, synchronized speed control, and precise discharge sequencing.
Engineered for Accuracy and Control

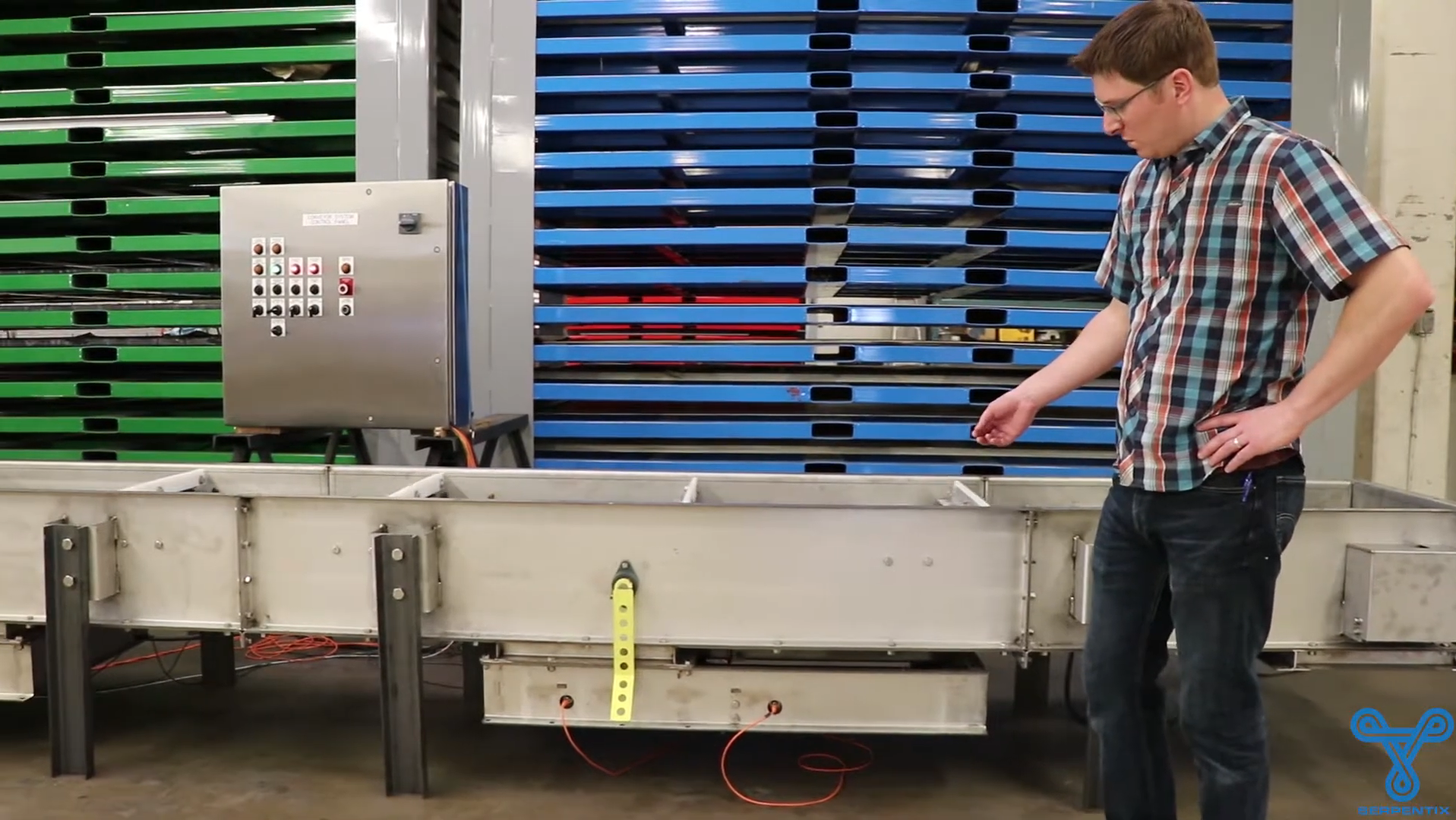

The Flight Distribution Conveyor ensures precise handling and even distribution of materials.
By using a series of flights attached to a continuous belt, it delivers consistent flow, minimizes spillage, and improves load balancing across multiple destinations. This controlled distribution prevents overloading, reduces equipment wear, and maximizes processing efficiency throughout your operation.
Even material loading prevents surge feeding, protects downstream equipment, and ensures optimal processing rates at each destination.
Efficiently feed several locations with one conveyor while maintaining precise volume control at each discharge point.
Flight design contains materials during transport, minimizing waste, reducing cleanup costs, and maintaining safer work environments.
Optimize Your Product Distribution Flow
Smart Distribution Features
Advanced design elements ensure reliable sludge handling, from even distribution and reduced spills to simplified maintenance and long-term durability.
Flights mounted to the belt distribute sludge evenly and scrape buildup off surfaces
Feed sludge into multiple bins with a single system—balanced and timed for efficiency
Engineered edge barriers and tight seals keep sludge where it belongs
Designed for rapid access, cleaning, and part replacement
Ideal for Multi-Point Material Handling
Mining & Aggregates
Wastewater Treatment
Power Generation
Proven in Multi-Discharge Operations
Ready to Validate Your Distribution Setup?
Submit your drawings to receive an engineering review focused on accuracy, balance, and material flow.
